Description

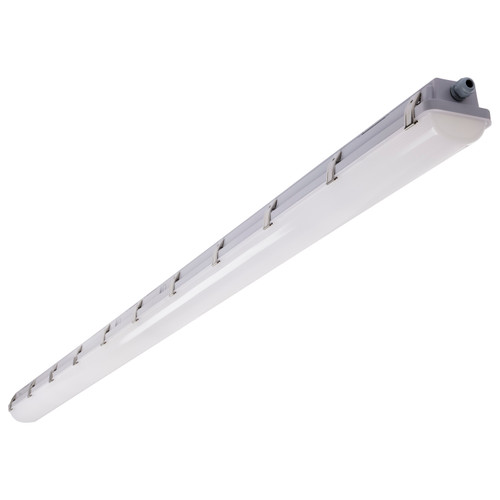

8 Foot - Vapor Proof Linear Fixture - CCT & Wattage Selectable - IP65 and IK08 Rated - 0-10V Dimming - 120V-347V
Product Specification
Avg Rated Hours
50000.0
Base
Integrated
Beam Spread
120
Brightness (Lumens)
6400L-9360L
Bulb Included
Integrated
CA Prop 65
Lead
CA Web Text
Lawful for sale
CCT Selectable
Yes
Case Cubic Ft.
1.2375
Case Height In.
4.33
Case Length In.
96.46
Case Quantity
1
Case UPC
10045900000000.0
Case Weight Lb.
12.35
Case Width In.
5.12
Color Rendering Index (CRI)
80+
Color of Light
Warm to Cool White
Country of Origin
Thailand
DLC Approved
Yes
Dimension String
L:94.49" W:4.33" H:3.46"
Dimmable
Yes-Dimmable
Dimmable Function
0-10V Dimming
Each Cubic Ft.
1.2375
Each Quantity
1.0
Finish Family
Gray
Fixture Type
Vapor Tight
Fixture/Body Finish
Gray
Flicker Free
No
HID Equiv
150W-200W
Has Driver
Yes
Height In.
3.46
IOT Enabled
No
IP Rating
IP65
Indoor / Outdoor
Indoor;Outdoor
Kelvin Temperature
3000K/4000K/5000K
Lamp Base
Integrated
Lamp Shape
Integrated LED
Lens Finish
Opaque
Lens Material
Polycarbonate (PC)
Location Rating
Wet
Material
Plastic
Mounting Procedure
Ceiling/Wall
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +45C (+113F)
Pack Type
Box
Power Factor
>0.96
Replaceable Light Source
No
RoHS Compliant
Yes
SDS class
LED_Fixture
Safety Listing
cETLus - Listed
Shape
Linear
Status
Active
Style
Utility
Surge Protection
Built-in surge protection - 2KV
THD
0.142
Tariff Code
9405.42.6000
Technology
LED
Type
Fixtures
UNSPSC
39111907
Voltage
120V-347V
Voltage Text
Range Voltage;AC Only
Warranty
5 Year Limited - Fixtures
Wattage Selectable
Yes
Weight Lb.
11.91
Width In.
4.33
Warranty Information
Standard Manufacturer's Limited Warranty
