Description
Overview

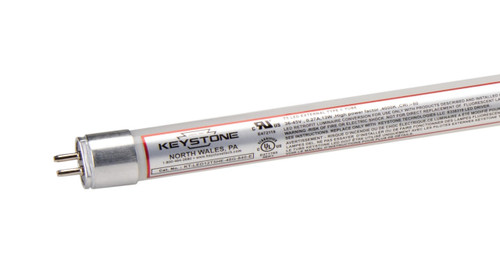

This 48 inch LED LED tube draws 12W and replaces a fluorescent tube. It puts out about 1,750 lumens of neutral cool white light as a replacement for F28T5 fluorescent lamps. Rated life is 50,000 hours, which means far fewer replacements.
Features
- 12W LED replaces F28T5
- 1,750 lumens at 4000K
- CRI 80+ for accurate color rendering
- Dimmable (0-10V)
- 240° beam spread
- 50,000 hour rated life
Specifications at a Glance
| Product Details | |
|---|---|
| Keystone Part # | KT-LED12T5HE-48G-840-E-CP |
| UPC | 843654121284 |
| Wattage | 12W |
| Brightness (Lumens) | 1750 |
| Color Temperature (Kelvin) | 4000K |
| Color Rendering Index (CRI) | 80+ |
| Input Voltage | Driver dependent (see spec sheet) |
| Base | G13 |
| Nominal Length | 48" |
| Dimmable | Yes (0-10V) |
| Beam Spread | 240° |
| Avg Rated Hours | 50000 |
| Replaces | F28T5 |
| Case Quantity | 25 |
Applications
- Offices and classrooms
- Warehouses and back-of-house areas
- Retail stores and grocery
- Parking garages and stairwells
Compatibility
Fits G13 sockets. Use a 0-10V dimmer rated for LED loads.
Frequently Asked Questions
Q: What kind of dimmer does it need?
A: It is rated for 0-10V dimming. Use a dimmer listed for LED loads, and check the spec sheet for any accessory the dimming method requires.
Q: Why is there a minimum order quantity?
A: This item ships in Keystone's sealed carton of 25, which protects it in transit, so it is sold in multiples of 25.
