Description

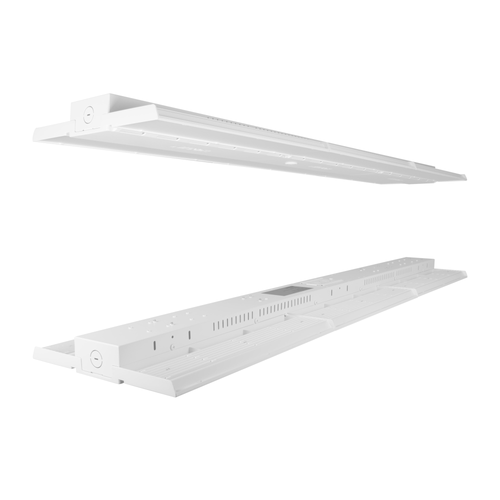

NICOR introduces the newest high bay product line: the patent pending, ultra-efficient, high-performance HML1 high bay. With only a 10×14″ footprint (on lower wattages), its compact design offers an impressive light output with simple, single-person installation. The DLC 5.1 Premium certi… NICOR introduces the newest high bay product line: the patent pending, ultra-efficient, high-performance HML1 high bay. With only a 10×14″ footprint (on lower wattages), its compact design offers an impressive light output with simple, single-person installation. The DLC 5.1 Premium certified fixture offers a variety of wattage, sensor, and aisle distribution options. It’s durable single-piece cast aluminum design is perfect for rugged applications like warehouses, gymnasiums, and other industrial or commercial spaces. Read More
- Construction Fully cast aluminum body with integrated cooling features Top mounted wireway cover for easy wire access Polyester powder coat finish
- Optical System Standard diffused lens Optional aisle lens (45° x 100°) available Optional wide lens (105° x 105°) available CCTs of 3500K, 4000K, 5000K and 5700K with >80 CRI
- Electrical Offers multiple power levels: 100W, 130W, 150W, 210W, 300W and 450W Operating temperature rating of -4ºF to 131ºF (-20ºC to 55ºC) Input voltage of 120-277V, 277-480V input option available Dimming: 0-10V standard
- Installations V-hook and chain mounting system included Wireguard option available for increased fixture protection Pendant mount and surface mount kits available For installations where power surge may be possible, NICOR recommends installing additional surge protection at the fixture or electrical distribution panel
- Full Listings cULus1598 Listed for damp locations ASHRAE 90.1 compliance when specified with sensor option RoHS Compliant Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions TM-21 Reported L70(10k) life >60,000 hours LM-79, LM-80 testing performed in accordance with IESNA standards DLC Premium and Standard Listing depending on optic distribution option UL impact test rated IK08/5 joules
- Warranty 5-year limited system warranty standard Warranty does not cover product failure due to an overvoltage event (power surge)
Warranty Information
