Description

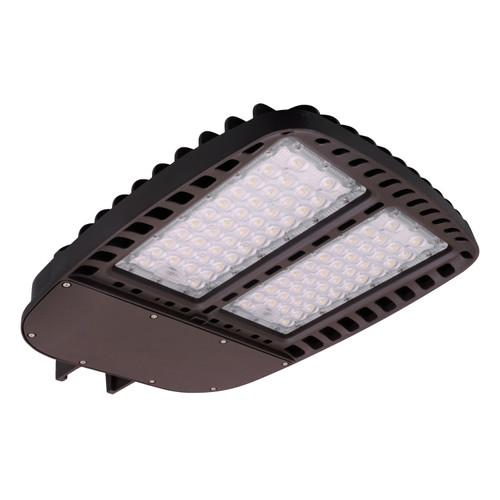

The OAL2 LED Area Light delivers high efficiency with maximum energy savings and advanced controls to suit a variety of applications. Its robust, low-profile housing is comprised of die-cast aluminum and has a modern, single piece design that will blend into most environments. Exceptional performanc… The OAL2 LED Area Light delivers high efficiency with maximum energy savings and advanced controls to suit a variety of applications. Its robust, low-profile housing is comprised of die-cast aluminum and has a modern, single piece design that will blend into most environments. Exceptional performance is enhanced by the precision die-cast thermodynamic fin cooling system, uniquely developed by NICOR. Quick to install, the OAL2 is a versatile fixture with easily interchangeable precision lenses in Type II through Type V distributions. The OAL2 is available in lumen packages from 13,000 to 40,000 lumens. Ideal for use in parking lots, roadways, recreational or public venues, walkways, auto dealerships, campuses, and other commercial environments. Read More
- Construction Heavy duty die-cast construction with single piece housing Low profile 3-inch design provides low wind resistance UV stabilized powder coat finish Stainless steel hardware and electrical SJ cord connection Injection molded silicone gasket seals the driver compartment
- Optical System Individual optics are precisely designed to shape the distribution maximizing efficiency and spacing criteria High impact polycarbonate lenses deliver four IES type distributions Type III distribution is standard Type II, IV, and V distribution optics are optional Zero uplight Utilizes advanced LED technology and available in 3000K, 3500K, 4000K and 5000K Standard 80 CRI to improve safety and color definition in public places See BUG Rating on the Performance Data Table
- Electrical Input voltage of 120-277VAC or 347-480VAC Industry leading surge protection (10kA on 120-277VAC and 20kA on 347-480VAC) provides single phase protection for line/neutral, line/ground and neutral/ground in accordance with IEEE C62.41 2002 C High category Operating temperature rating of -40°F to 104°F (-40°C to 40°C) Available in 60W, 100W, 150W, 200W and 300W products See performance data for delivered lumen output
- Installations Mounting arms are available for a variety of installations All mounting arms are die-cast aluminum and available in Bronze, White, or custom color Adjustable Pole Mount Arm provides up to 180° of adjustability and mounts to a round or square pole Adjustable Wall Mount Arm provides up to 180° of adjustability and mounts to a flat wall Slipfitter Mount Adaptor installs directly to a nominal 2” round or square pole Straight Mount Arm mounts to a round or square pole Trunnion Mounting Arm easily mounts to a variety of poles
- Full Listings LM-79, LM-80 testing performed in accordance with IESNA standards UL/cUL1598 Listed for wet locations IP65 Rated DLC 5.1 Premium Listed Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions TM-21 Reported L70(9k) life >54,000 hours
- Warranty 5-year limited system warranty standard Warranty does not cover product failure due to an overvoltage event (power surge)
