Description

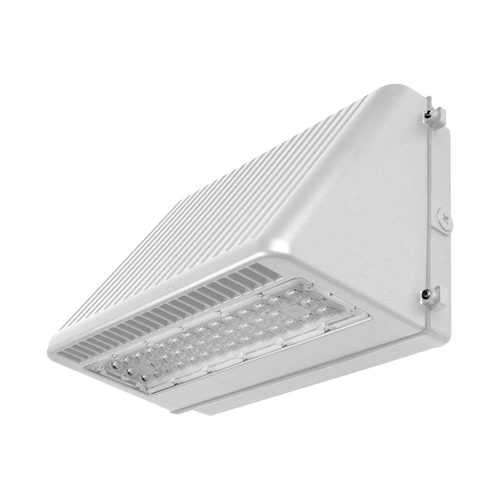

The Full Cut Off Cygnus LED Wallpack features a classic, architectural style with optimal performance and efficiency. With output up to 125 lumens per watt, the Cygnus delivers uniform light distribution with minimized glare using a Type III distribution precision lens. It is easy to install on wall… The Full Cut Off Cygnus LED Wallpack features a classic, architectural style with optimal performance and efficiency. With output up to 125 lumens per watt, the Cygnus delivers uniform light distribution with minimized glare using a Type III distribution precision lens. It is easy to install on walls or directly to a J-Box with its separable hinged backplate and has three knockouts for through-wiring or sensor additions. The Cygnus is suitable for perimeter lighting as well as building entrances, walkways, or other commercial spaces where general purpose lighting is desired. Read More
- Construction Die-cast aluminum housing (3) 1/2” knockouts for conduit feed or sensors Toolless, separable hinged backplate for easy installation and maintenance Stainless steel hardware Fine-textured, UV-stabilized powder coat bronze finish
- Optical System Clear injection-molded acrylic creates uniform distribution while maximizing lumen output Type III distribution Utilizes advanced LED technology with CCT of 4000K and 5000K CRI 80+
- Electrical Thermally-protected, high-efficiency driver Operating temperature rating of -4° to 104°F (-20°C to 40°C) Input voltage of 120-277VAC Available in 50 and 80 watt Photocell optional Driver delivers full-range dimming from 0 - 10VDC on 80W model
- Installations Fixture mounts directly to J-Boxes and walls with screws Wiring possible through backplate or knockouts Separable hinged backplate to allow for easy mounting For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
- Full Listings LM-79, LM-80 testing performed in accordance with IESNA standards UL and CUL Listed for wet locations Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions TM-21 Reported L70(9k) life >54,000 hours TM-21 Projected L70(9k) life =75,000 hours
- Warranty 5-year limited system warranty standard Warranty does not cover product failure due to an overvoltage event (power surge)
