Description
| Manufacturer Documents: » Download the Satco 63-553 Spec Sheet (PDF) | Installation Instructions (PDF) | Dimensional Drawing (PDF) |

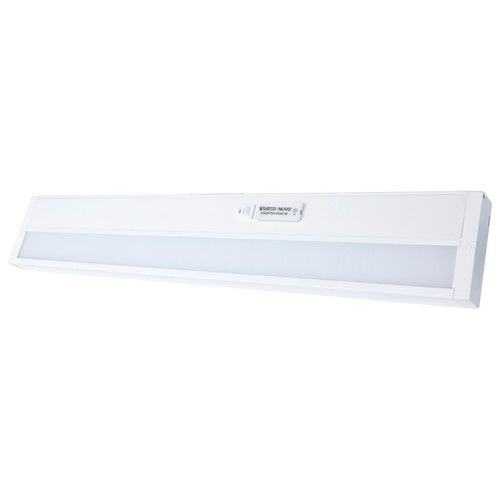

The Satco Nuvo 63-553 is a 22 Inch, finished in White. It has an integrated LED light source: 13W, 730-878 lumens, 2700K-5000K (selectable), 90+ CRI. It measures length 22.00", width 3.54", height 1.00" and is rated for dry locations. It runs on 120V, is dimmable (Smart-Starfish App only) and is cETLus listed.
Key Features
- 13-watt, 22-inch Under Cabinet Lighting with STARFISH Wi-Fi Technology
- Color changing RGB and tunable white technology from 2700K to 5000K, tunable with the STARFISH app
- Length: 22.00 inches, Width: 3.54 inches, Height: 1.00 inch
- Two mounting options to best fit your installation: Use the integrated mounting screws or standard keyhole mounting
- Three wiring configurations for ease of installation: Direct Wire to Fixture, Direct Wire to Junction Box, or Plug into an outlet with Power Cord (sold separately)
- Dry location rated for indoor use
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco Nuvo |
| Part Number | 63-553 |
| UPC | 045923635533 |
| Product Type | Under Cabinet |
| Style | Utility |
| Finish | White |
| Material | Aluminum |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 13W |
| Lumens | 730L-878L |
| Color Temperature | 2700K-5000K |
| CRI | 90+ |
| Voltage | 120V |
| Dimmable | Yes-Dimmable |
| Dimming | Smart-Starfish App only |
| Beam Spread | 110 |
| Rated Life (hours) | 25000 |
| Dimensions & Mounting | |
| Dimensions | L:22.00" W:3.54" H:1.00" |
| Height (in) | 1 |
| Width (in) | 3.54 |
| Mounting | Under Cabinet |
| Sloped Ceiling Compatible | No |
| Fixture Weight (lb) | 1.3 |
| Ratings & Compliance | |
| Indoor / Outdoor | Indoor |
| Location Rating | Dry |
| IP Rating | IP20 |
| Safety Listing | cETLus |
| California | California T24 Listed |
| Warranty | 5-Years |
| Country of Origin | China |
| Packaging | |
| Sold | Each (box) |
| Case Quantity | 12 |
| Shipping Weight (lb) | 1.58 |
Warranty Information
Standard Manufacturer's Limited Warranty
