Description

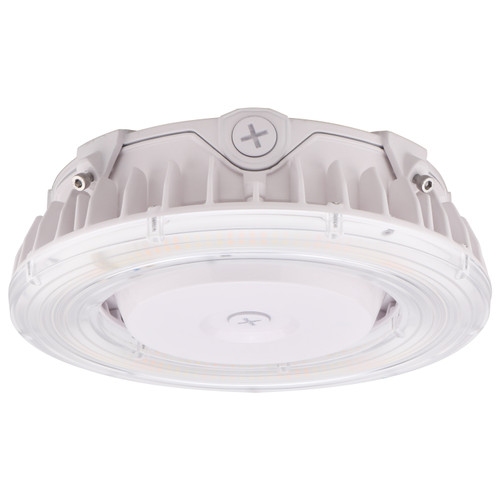

LED Canopy Fixture - 25 Watt - CCT Selectable - White Finish
Product Specification
Avg Rated Hours
50000.0
BUG Rating
B2-U3-G1
Base
Integrated
Beam Spread
150
Brightness (Lumens)
3718L/3975L/3766L
Bulb Included
Integrated
CA Prop 65
Lead
CA Web Text
Lawful for sale
CCT Selectable
Yes
Case Cubic Ft.
1.085
Case Height In.
12.6
Case Length In.
12.6
Case Quantity
2
Case UPC
10045900000000.0
Case Weight Lb.
12.1
Case Width In.
11.81
Color Rendering Index (CRI)
80+
Color of Light
Warm to Cool White
Country of Origin
Vietnam
DLC Approved
Yes
Diameter In.
10.04
Dimension String
H:3.15" DIA:10.03"
Dimmable
Yes-Dimmable
Dimmable Function
0-10V Dimming
Each Cubic Ft.
0.4447
Each Quantity
1.0
Finish Family
White
Fixture Type
Canopy
Fixture/Body Finish
White
Has Driver
Yes
Height In.
3.15
IP Rating
IP65
Indoor / Outdoor
Outdoor
Kelvin Temperature
3000K/4000K/5000K
Lamp Base
Integrated
Lamp Shape
Integrated LED
Lens Material
Polycarbonate (PC)
Location Rating
Wet
Material
Die-Cast Aluminum
Mounting Procedure
Ceiling Pendant
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +45C (+113F)
Pack Type
Box
Photocell
Optional Add-On
Power Factor
>0.9
Replaceable Light Source
No
RoHS Compliant
Yes
SDS class
LED_Fixture
Safety Listing
cULus - Certified
Status
Active
Style
Utility
Surge Protection
Built-in surge protection - 2.5KV
THD
<20%
Tariff Code
9405.11.6020
Technology
LED
Type
Fixtures
UNSPSC
39111538
Voltage
120V-277V
Voltage Text
Range Voltage;AC Only
Warranty
5 Year Limited - Fixtures
Wattage Selectable
No
Weight Lb.
4.41
Width In.
10.04
Warranty Information
Standard Manufacturer's Limited Warranty
