Description

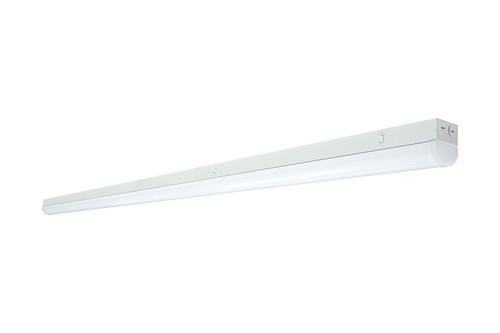

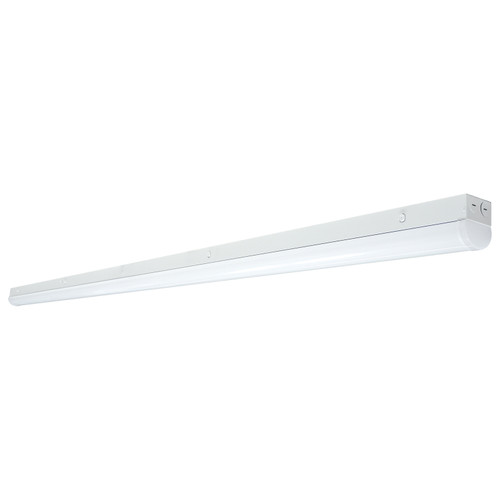

LED 2 ft. - Linear Strip Light - 20W - White Finish - CCT Selectable - 100-277V - Integrated EM & Sensor
Product Specification
Additional Info
EM Mode 4W/90 Min run time. Other DLC Listings: S-MU6FZ4, Standard, Direct Linear Ambient Luminaires.
Avg Rated Hours
50000.0
BUG Rating
B1-U3-G1
Base
Integrated
Battery Back-up
Yes
Battery Chemistry
Lithium-ion (Li-ion)
Beam Spread
120
Brightness (Lumens)
2735L-2830L
Bulb Included
Integrated
CA Prop 65
Lead
CA Web Text
Lawful for sale
CCT Selectable
Yes
Case Cubic Ft.
3.9433
Case Height In.
11.81
Case Length In.
26.65
Case Quantity
8
Case UPC
10045900000000.0
Case Weight Lb.
28.22
Case Width In.
21.65
Color Rendering Index (CRI)
80+
Color of Light
Neutral White to Daylight
Connection
Direct Wired
Country of Origin
Vietnam
DLC Approved
Yes
Dimension String
L:24.00" W:2.95" H:3.27"
Dimmable
Yes-Dimmable
Dimmable Function
0-10V Dimming
Each Cubic Ft.
0.4171
Each Quantity
1.0
Finish Family
White
Fixture Type
Strip Light
Fixture/Body Finish
White
Flicker Free
Yes
HID Equiv
100W-150W
Has Driver
Yes
Height In.
3.27
IOT Enabled
No
IP Rating
IP20
Indoor / Outdoor
Indoor
Kelvin Temperature
3500K/4000K/5000K
Lamp Base
Integrated
Lamp Shape
Integrated LED
Lens Finish
White
Lens Material
Polycarbonate (PC)
Location Rating
Damp
Material
Steel
Mounting Diameter
4.75
Mounting Procedure
Ceiling
Mounting String
D:4.75"
NSF Approved
No
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +60C (+140F)
Pack Type
Box
Photocell
Has Photocell
Power Factor
0.9
Replaceable Light Source
No
RoHS Compliant
Yes
SDS class
LED_Fixture
Safety Listing
cULus - Listed
Shape
Rectangle
Status
Active
Style
Utility
Surge Protection
Built-in surge protection - 2KV
THD
0.106
Tariff Code
9405.11.6010
Technology
LED
Type
Fixtures
UNSPSC
39112507
Voltage
120V-277V
Voltage Text
Range Voltage;AC Only
Warranty
5 Year Limited - Fixtures
Wattage Selectable
No
Weight Lb.
2.31
Width In.
2.95
Warranty Information
Standard Manufacturer's Limited Warranty
