Description

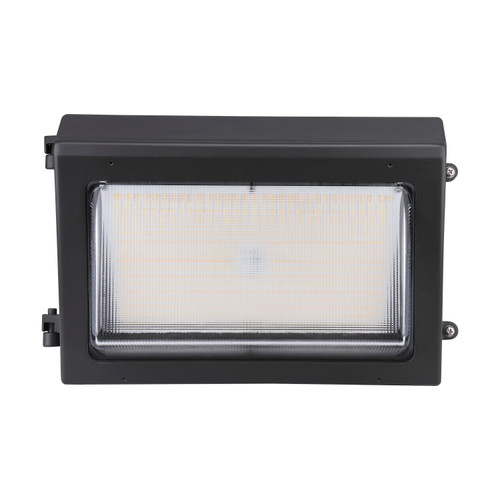

CCT and Wattage Adjustable LED Cutoff Wall Pack - Integrated Bypassable Photocell - CCT Selectable from 3000, 4000 or 5000K - Wattage Selectable from 80, 100, or 120 Watt - 120-277 Volt
Product Specification
ADA Compliant
No
Avg Rated Hours
50000.0
BUG Rating
B3-U3-G5
Base
Integrated
Beam Spread
110
Brightness (Lumens)
10800L-15600L
Bulb Included
Integrated
CA Prop 65
Lead
CA Web Text
Lawful for sale
CCT Selectable
Yes
Case Cubic Ft.
1.3563
Case Height In.
12.6
Case Length In.
15.75
Case Quantity
1
Case UPC
10045923670807
Case Weight Lb.
11.24
Case Width In.
11.81
Color Rendering Index (CRI)
80+
Color of Light
Warm to Cool White
Connection
Hardwire
Country of Origin
Vietnam
DLC Approved
Yes
Dimension String
W:14.26" H:9.83" E:9.33"
Dimmable
Yes-Dimmable
Dimmable Function
0-10V Dimming Only
Each Cubic Ft.
1.3563
Each Quantity
1.0
Finish Family
Bronze
Fixture Type
Wall Pack
Fixture/Body Finish
Bronze
HID Equiv
200W-400W
Height In.
9.83
IOT Enabled
No
IP Rating
IP65
Indoor / Outdoor
Indoor;Outdoor
Kelvin Temperature
3000K/4000K/5000K
Lamp Base
Integrated
Lamp Shape
Integrated LED
Lens Material
Glass
Location Rating
Wet
Material
Die-Cast Aluminum
Mounting Procedure
Wall
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Pack Type
Box
Photocell
Yes - Bypassable
Power Factor
>0.9
Replaceable Light Source
No
RoHS Compliant
Yes
SDS class
LED_Fixture
Safety Listing
cULus - Certified
Status
Active
Style
Traditional
Surge Protection
Built-in surge protection - 10KV
THD
0.15
Tariff Code
9405.42.6000
Technology
LED
Type
Fixtures
UNSPSC
39111613
Voltage
120V-277V
Voltage Text
Range Voltage;AC Only
Warranty
5 Year Limited - Fixtures
Wattage Selectable
Yes
Weight Lb.
10.5
Width In.
14.26
Warranty Information
Standard Manufacturer's Limited Warranty
