Description

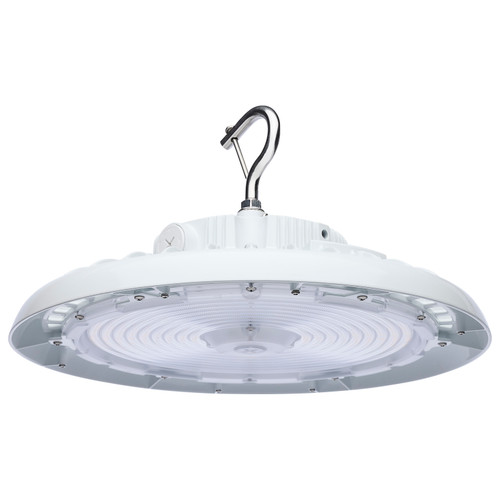

Wattage 80W/100W/120W and CCT Selectable 3K/4K/5K LED UFO High Bay - 120-347 Volt - White Finish
Product Specification
Avg Rated Hours
50000.0
Base
Integrated
Beam Spread
90
Brightness (Lumens)
11840L-18600L
Bulb Included
Integrated
CA Prop 65
Lead
CA Web Text
Lawful for sale
CCT Selectable
Yes
Case Cubic Ft.
0.3971
Case Height In.
4.92
Case Length In.
11.81
Case Quantity
1
Case UPC
10045923651950
Case Weight Lb.
5.72
Case Width In.
11.81
Color Rendering Index (CRI)
80+
Color of Light
Warm White to Natural Light
Country of Origin
Vietnam
DLC Approved
Yes
Diameter In.
11.0
Dimension String
H:7.30" DIA:11.00"
Dimmable
Yes-Dimmable
Dimmable Function
0-10V Dimming Only
Each Cubic Ft.
0.3971
Each Quantity
1.0
Finish Family
White
Fixture Type
UFO Hi-Bay
Fixture/Body Finish
White
HID Equiv
150W-250W
Height In.
7.3
IOT Enabled
No
IP Rating
IP65
Indoor / Outdoor
Indoor
Kelvin Temperature
3000K/4000K/5000K
Lamp Base
Integrated
Lamp Shape
Integrated LED
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Location Rating
Wet
Material
Die-Cast Aluminum
Mounting Procedure
Pendant Hanging Surface
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Pack Type
Brown Box
Photocell
Optional Add-On
Power Factor
0.9
Replaceable Light Source
No
RoHS Compliant
Yes
SDS class
LED_Fixture
Safety Listing
cULus - Certified
Shape
Round
Status
Active
Style
Utility
Surge Protection
Built-in surge protection - 6KV
THD
0.15
Tariff Code
9405.11.6020
Technology
LED
Type
Fixtures
UNSPSC
39111546
Voltage
120V-347V
Voltage Text
Range Voltage;AC Only
Warranty
5 Year Limited - Fixtures
Wattage Selectable
Yes
Weight Lb.
4.53
Width In.
11.0
Wire Length In.
72.0
