Description

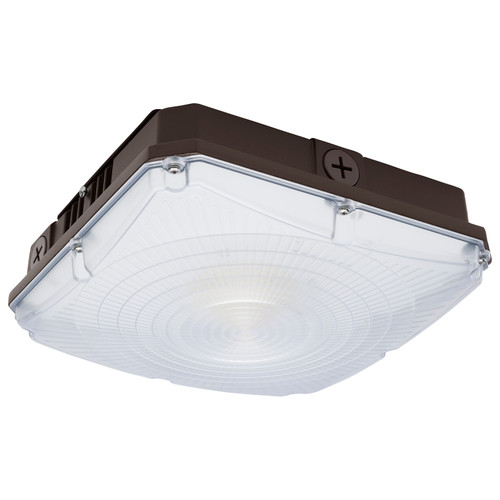

10 Inch LED Field Selectable Canopy Fixture - 45/60/70 Watts - 3K/4K/5K CCT
Product Specification
Additional Info
UV stabilized powder coated finish
Avg Rated Hours
50000.0
BUG Rating
B3-U3-G3
Base
Integrated
Beam Spread
150
Brightness (Lumens)
5625L-9450L
Bulb Included
Integrated
CA Prop 65
Lead
CA Web Text
Lawful for sale
CCT Selectable
Yes
Case Cubic Ft.
2.0625
Case Height In.
12.4
Case Length In.
23.03
Case Quantity
4
Case UPC
10045923659475
Case Weight Lb.
25.02
Case Width In.
12.48
Color Rendering Index (CRI)
80+
Color of Light
Soft White to Natural Light
Connection
Direct Wired
Country of Origin
Vietnam
DLC Approved
Yes
Dimension String
L:10.06" W:10.06" H:4.19"
Dimmable
Yes-Dimmable
Dimmable Function
0-10V Dimming
Each Cubic Ft.
0.4402
Each Quantity
1.0
Finish Family
Bronze
Fixture Type
Canopy
Fixture/Body Finish
Bronze
HID Equiv
94W/125W/158W
Height In.
4.19
IOT Enabled
No
IP Rating
IP65
Indoor / Outdoor
Outdoor
Kelvin Temperature
3000K/4000K/5000K
Lamp Base
Integrated
Lamp Shape
Integrated LED
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Location Rating
Wet
Material
Die-Cast Aluminum
Mounting Procedure
Ceiling;Pendant Hanging Surface
Operating Frequency
50/60Hz
Operating Temp
-30C (-22F) to +45C (+113F)
Pack Type
Color Box
Photocell
No
Power Factor
0.9
Replaceable Light Source
No
RoHS Compliant
Yes
SDS class
LED_Fixture
Safety Listing
cULus - Certified
Sensor Occupancy Vacancy
No
Shape
Square
Status
Active
Style
Utility
Surge Protection
Built-in surge protection - 4KV
THD
0.095
Tariff Code
9405.11.6020
Technology
LED
Type
Fixtures
UNSPSC
39111538
Voltage
120V-277V
Voltage Text
Range Voltage;AC Only
Warranty
5 Year Limited - Fixtures
Wattage Selectable
Yes
Weight Lb.
5.03
Width In.
10.06
