Description

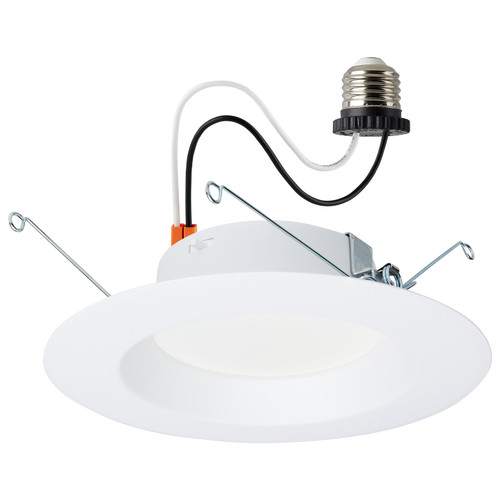

12.5 Watt LED High Lumen Downlight Retrofit - 5-6 Inch - 27K/30K/35K/40K/50K CCT Selectable - 120 Volts - Dimmable - White Finish
Product Specification
Air Tight
Yes
Avg Rated Hours
50000.0
Base
E26 Adapter
Beam Spread
100
Brightness (Lumens)
1100L
Bulb Included
Integrated
CA Prop 65
Lead
CA Web Text
California T24 Listed
CCT Selectable
Yes
Can Size
5-6 in.
Case Cubic Ft.
1.5138
Case Height In.
8.86
Case Length In.
25.0
Case Quantity
12
Case UPC
10045923116466
Case Weight Lb.
10.69
Case Width In.
11.81
Ceiling Aperture
5.36 in. Cutout
Color Rendering Index (CRI)
90+
Color of Light
Warm White to Natural Light
Country of Origin
China
DLC Approved
No
Diameter In.
7.36
Dimension String
H:1.97" DIA:7.36"
Dimmable
Yes-Dimmable
Each Cubic Ft.
0.104
Each Quantity
1.0
Finish Family
White
Fixture Type
Downlight Retrofit
Fixture/Body Finish
White
Height In.
1.97
IC Rated
Yes
Indoor / Outdoor
Indoor
Kelvin Temperature
2700K/3000K/3500K/4000K/5000K
Lamp Base
Medium Adapter
Lamp Shape
Integrated LED
Lens Finish
Matte Frosted
Lens Material
Polycarbonate (PC)
Location Rating
Wet
Material
Aluminum
Minimum Compartment Size
For the 5 in. Recessed Luminaire: Dia: 5.38, Height: 7.5; For the 6 in. Recessed Luminaire: Dia: 6 In, Height: 7.5 in
Mounting Procedure
Recessed Retrofit
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Pack Type
Box
Power Factor
0.9
Replaceable Light Source
No
RoHS Compliant
Yes
SDS class
LED_Fixture
Safety Listing
cRUus - Recognized Component;cULus - Certified;cULus - Classified
Status
Active
Style
Utility
Surge Protection
Built-in surge protection - 1KV
THD
0.414
Tariff Code
8539.52.0091
Technology
LED
Trim Color
White
Type
Fixtures
UNSPSC
39111505
Voltage
120V
Voltage Text
AC Only
Warranty
5 Year Limited - Fixtures
Wattage
12.5
Wattage Selectable
No
Weight Lb.
0.6
Width In.
7.36
Warranty Information
Standard Manufacturer's Limited Warranty
