Description

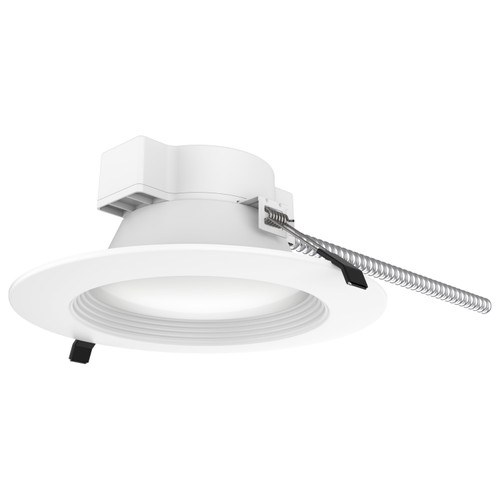

32 Watt Commercial LED Downlight - 8 in. - Color Adjustable - Lumen Adjustable - 120-277 volt
Product Specification
Air Tight
No
Avg Rated Hours
50000.0
Base
Integrated
Battery Back-up
No
Beam Spread
40
Brightness (Lumens)
1600L/2000L/2450L
Bulb Included
Integrated
CA Prop 65
Lead
CA Web Text
Lawful for sale
CCT Selectable
Yes
Can Size
8 in.
Case Cubic Ft.
1.9512
Case Height In.
15.94
Case Length In.
20.28
Case Quantity
4
Case UPC
10045923118163
Case Weight Lb.
12.06
Case Width In.
10.43
Ceiling Aperture
8.30 in. Cutout
Color Rendering Index (CRI)
80+
Color of Light
Warm to Cool White
Connection
Direct Wired
Country of Origin
China
DLC Approved
No
Diameter In.
9.06
Dimension String
H:5.05" DIA:9.06"
Dimmable
Yes-Dimmable
Dimmable Function
0-10V Dimming Only
Each Cubic Ft.
0.4191
Each Quantity
1.0
Finish Family
Silver
Fixture Type
Commercial Downlight Retrofit
Fixture/Body Finish
Silver
Has Driver
Yes
Height In.
5.05
IC Rated
Yes
Indoor / Outdoor
Indoor
Kelvin Temperature
2700K/3000K/3500K/4000K/5000K
Lamp Base
Integrated
Lamp Shape
Integrated LED
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Location Rating
Damp
Material
Aluminum
Mounting Procedure
Ceiling
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Pack Type
Box
Power Factor
0.99
Replaceable Light Source
No
RoHS Compliant
Yes
SDS class
LED_Lamp
Safety Listing
cETLus - Listed
Shape
Round
Status
Active
Style
Utility
Tariff Code
9405.42.6000
Technology
LED
Trim Color
White
Type
Fixtures
UNSPSC
39111515
Voltage
120V-277V
Voltage Text
Range Voltage;AC Only
Warranty
5 Year Limited - LED Commercial Downlights
Wattage Selectable
Yes
Weight Lb.
1.91
Width In.
9.06
Warranty Information
Standard Manufacturer's Limited Warranty
