Description
| Manufacturer Documents: » Download the Satco 65-1031 Spec Sheet (PDF) | Installation Instructions (PDF) | Dimensional Drawing (PDF) |

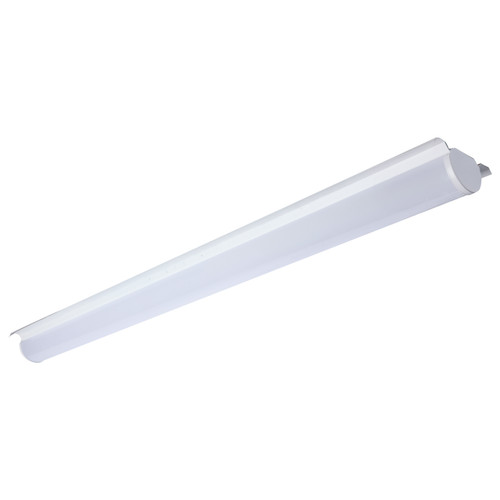

The Satco Nuvo 65-1031 is a 30/40/50 Watt LED 4 Foot Retrofit Strip Light, finished in Gloss White. It has an integrated LED light source: 30W/40W/50W, 3900/5200/6500 lumens, 3500K/4000K/5000K (selectable), 80+ CRI. It measures length 47.90", width 5.89", height 3.30" and is rated for damp locations. It runs on 120V-277V, is dimmable (0-10V Dimming) and is cULus classified. A good fit for garages, workshops, warehouses, utility rooms and commercial spaces.
Key Features
- Field Selectable (3 wattages and 3 CCT)
- Retrofit Existing 2.75"-5.25" Wide Strip Fixtures
- Adjustable Installation Strips
- Smooth Frosted Lens for Even Light Distribution
- 4-foot Steel Construction
- 0-10V Dimmable
- Damp Location Rated
- 50,000 Hour Functional Life
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco Nuvo |
| Part Number | 65-1031 |
| UPC | 045923401985 |
| Product Type | Strip Light |
| Style | Utility |
| Finish | Gloss White |
| Material | Steel |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 30W/40W/50W |
| Lumens | 3900L/5200L/6500L |
| Color Temperature | 3500K/4000K/5000K |
| CRI | 80+ |
| Voltage | 120V-277V |
| Dimmable | Yes-Dimmable |
| Dimming | 0-10V Dimming |
| Beam Spread | 120 |
| Rated Life (hours) | 50000 |
| Dimensions & Mounting | |
| Dimensions | L:47.90" W:5.89" H:3.30" |
| Height (in) | 3.3 |
| Width (in) | 5.89 |
| Mounting | Ceiling/Wall |
| Sloped Ceiling Compatible | No |
| Fixture Weight (lb) | 3.42 |
| Ratings & Compliance | |
| Indoor / Outdoor | Indoor |
| Location Rating | Damp |
| Safety Listing | cULus - Classified |
| DLC | Premium, Standard, Standard, Standard, Standard, Standard |
| California | Lawful for sale |
| Warranty | 5-Years |
| Country of Origin | Vietnam |
| Packaging | |
| Sold | Each (box) |
| Case Quantity | 6 |
| Shipping Weight (lb) | 3.42 |
