Description
| Manufacturer Documents: » Download the Satco 65-1513 Spec Sheet (PDF) | Installation Instructions (PDF) | Dimensional Drawing (PDF) |

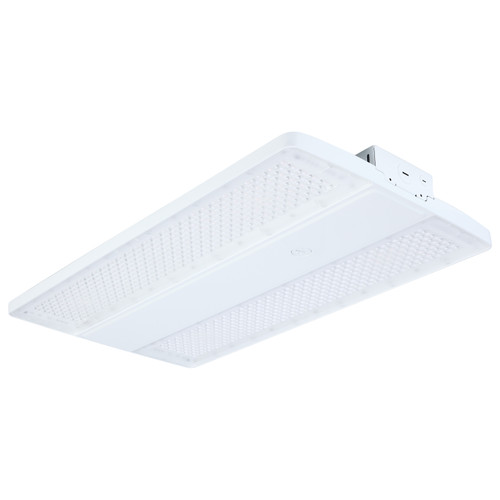

The Satco Nuvo 65-1513 is a LED Linear High Bay, finished in White. It has an integrated LED light source: 320W/295W/255W, 37800-48500 lumens, 3000K/4000K/5000K (selectable), 80+ CRI. It measures length 22.00", width 12.40", height 1.89" and is rated for damp locations. It runs on 120V-347V, is dimmable (0-10V Dimming) and is cULus listed. A good fit for warehouses, gyms and high-ceiling commercial spaces.
Key Features
- Beam Selectable (45x100/65x95/90x90)
- 3 CCT Selectable (3000K/4000K/5000K)
- 3 Wattage Selectable (320W/295W/255W)
- 6kV Surge Protection
- Die-Cast Aluminum Housing with IK09 Rated PC Lens
- Integrated Sensor Port
- 120-347V Range Voltage and 0-10V Dimmable
- 41" Suspension Kit Included
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco Nuvo |
| Part Number | 65-1513 |
| UPC | 045923412493 |
| Product Type | Linear Hi-Bay |
| Style | Utility |
| Finish | White |
| Material | Die-Cast Aluminum |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 320W/295W/255W |
| Lumens | 37800L-48500L |
| Color Temperature | 3000K/4000K/5000K |
| CRI | 80+ |
| Voltage | 120V-347V |
| Dimmable | Yes-Dimmable |
| Dimming | 0-10V Dimming |
| Beam Spread | 45x100/65x95/90x90 |
| Rated Life (hours) | 50000 |
| Dimensions & Mounting | |
| Dimensions | L:22.00" W:12.40" H:1.89" |
| Height (in) | 1.89 |
| Width (in) | 12.4 |
| Max Overall Height (in) | 42.89 |
| Mounting | Ceiling |
| Fixture Weight (lb) | 8.8 |
| Ratings & Compliance | |
| Indoor / Outdoor | Indoor |
| Location Rating | Damp |
| IP Rating | IP20 |
| Safety Listing | cULus - Listed |
| DLC | Premium |
| California | Lawful for sale |
| Warranty | 5-Years |
| Country of Origin | Vietnam |
| Packaging | |
| Sold | Each (box) |
| Case Quantity | 1 |
| Shipping Weight (lb) | 10.89 |
