Description
| Manufacturer Documents: » Download the Satco 65-1540 Spec Sheet (PDF) | Installation Instructions (PDF) | Dimensional Drawing (PDF) |

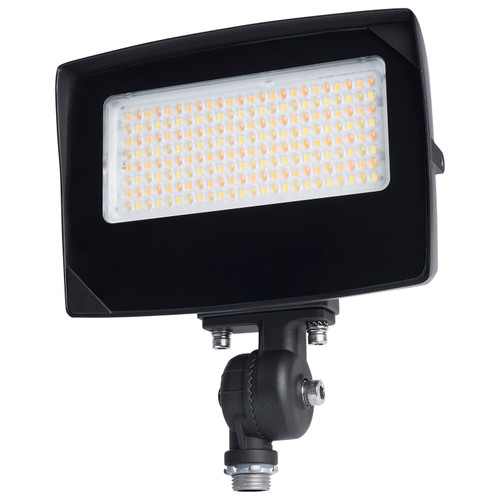

The Satco Nuvo 65-1540 is a LED Flood Light, finished in Bronze. It has an integrated LED light source: 35W/25W/15W, 1998-5292 lumens, 3000K/4000K/5000K (selectable), 80+ CRI. It measures length 7.80", width 3.15", height 8.80" and is rated for wet locations. It runs on 120V-347V, is dimmable (0-10V Dimming) and is cULus listed. A good fit for parking lots, building exteriors, yards and job sites.
Key Features
- Beam Selectable (7Vx6H/6Vx6H/5Vx5H)
- 3 CCT Selectable (3000K/4000K/5000K)
- 3 Wattage Selectable (35W/25W/15W)
- 6kV Surge Protection
- IP65 Rated
- Die-Cast Aluminum Housing with Glass Lens
- Integrated By-Passable Photocell
- 120-347V Range Voltage and 0-10V Dimmable
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco Nuvo |
| Part Number | 65-1540 |
| UPC | 045923412585 |
| Product Type | Flood Light |
| Style | Utility |
| Finish | Bronze |
| Material | Die-Cast Aluminum |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 35W/25W/15W |
| Lumens | 1998L-5292L |
| Color Temperature | 3000K/4000K/5000K |
| CRI | 80+ |
| Voltage | 120V-347V |
| Dimmable | Yes-Dimmable |
| Dimming | 0-10V Dimming |
| Beam Spread | 135x125/120x120/90x90 |
| Rated Life (hours) | 50000 |
| Dimensions & Mounting | |
| Dimensions | L:7.80" W:3.15" H:8.80" |
| Height (in) | 8.8 |
| Width (in) | 3.15 |
| Fixture Weight (lb) | 3.26 |
| Ratings & Compliance | |
| Indoor / Outdoor | Outdoor |
| Location Rating | Wet |
| IP Rating | IP65 |
| Safety Listing | cULus - Listed |
| DLC | Premium |
| California | Lawful for sale |
| Warranty | 5-Years |
| Country of Origin | Vietnam |
| Packaging | |
| Sold | Each (box) |
| Case Quantity | 6 |
| Shipping Weight (lb) | 3.92 |
