Description
| Manufacturer Documents: » Download the Satco 65-1677 Spec Sheet (PDF) | Installation Instructions (PDF) | Dimensional Drawing (PDF) |

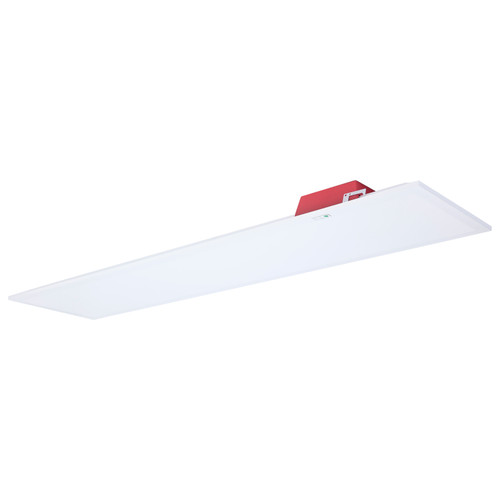

The Satco Nuvo 65-1677 is a 20/30/40 Wattage Selectable LED 1ft x 4ft Backlit Panel, finished in White. It has an integrated LED light source: 20W/30W/40W, 2500/3750/5000 lumens, 3500K/4000K/5000K (selectable), 80+ CRI. It measures length 47.76", width 11.93", height 2.60" and is rated for damp locations. It runs on 120V-347V, is dimmable (0-10V Dimming) and is cULus certified. A good fit for offices, schools, healthcare and retail ceilings.
Key Features
- Field Selectable - 3 CCT and 3 Wattage
- 1X4 Panel
- Emergency Battery Backup Model
- 120-347 Voltage
- Steel Body with Die-cast Aluminum Trim for Seamless Corners
- TAA Compliant
- Damp Location Rated
- 50,000 Hour Functional Life
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco Nuvo |
| Part Number | 65-1677 |
| UPC | 045923411885 |
| Product Type | Flat Panel |
| Style | Utility |
| Finish | White |
| Material | Die-Cast Aluminum |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 20W/30W/40W |
| Lumens | 2500L/3750L/5000L |
| Color Temperature | 3500K/4000K/5000K |
| CRI | 80+ |
| Voltage | 120V-347V |
| Dimmable | Yes-Dimmable |
| Dimming | 0-10V Dimming |
| Beam Spread | 120 |
| Rated Life (hours) | 50000 |
| Dimensions & Mounting | |
| Dimensions | L:47.76" W:11.93" H:2.60" |
| Height (in) | 2.6 |
| Width (in) | 11.93 |
| Mounting | Ceiling |
| Fixture Weight (lb) | 6.39 |
| Ratings & Compliance | |
| Indoor / Outdoor | Indoor |
| Location Rating | Damp |
| IP Rating | IP20 |
| Safety Listing | cULus - Certified |
| DLC | Premium, Standard |
| California | Lawful for sale |
| Warranty | 5-Years |
| Country of Origin | Mexico |
| Packaging | |
| Sold | Each (box) |
| Case Quantity | 1 |
| Shipping Weight (lb) | 7.41 |
