Description
| Manufacturer Documents: » Download the Satco 65-403 Spec Sheet (PDF) | Installation Instructions (PDF) |

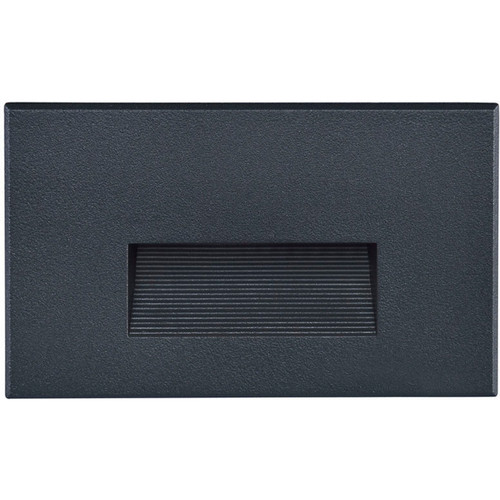

The Satco Nuvo 65-403 is a LED Horizontal Step Light, finished in Bronze. It has an integrated LED light source: 5W, 407 lumens, 3000K, 80+ CRI. It measures length 1.63", width 5.00", height 3.00" and is rated for wet locations. It runs on 120V, is dimmable (Forward or Reverse Phase) and is cULus listed. A good fit for parking lots, building exteriors, yards and job sites.
Key Features
- Length: 1.63 inches, Width: 5.00 inches, Height: 3.00 inches
- Dimmable
- Bronze Finish
- 3000K Warm White Light
- 407 lumens
- Wet location rated for outdoor use
- Easy installation
- FCC and RoHS compliant
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco Nuvo |
| Part Number | 65-403 |
| UPC | 045923554032 |
| Product Type | Step Light |
| Style | Utility |
| Finish | Bronze |
| Material | Die-Cast Aluminum |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 5W |
| Lumens | 407L |
| Color Temperature | 3000K |
| CRI | 80+ |
| Voltage | 120V |
| Dimmable | Yes-Dimmable |
| Dimming | Forward or Reverse Phase |
| Rated Life (hours) | 50000 |
| Dimensions & Mounting | |
| Dimensions | L:1.63" W:5.00" H:3.00" |
| Height (in) | 3 |
| Width (in) | 5 |
| Mounting | Horizontal Step Strip |
| Fixture Weight (lb) | 0.43 |
| Ratings & Compliance | |
| Indoor / Outdoor | Outdoor |
| Location Rating | Wet |
| Safety Listing | cULus |
| California | Lawful for sale |
| Warranty | 5-Years |
| Country of Origin | Taiwan |
| Packaging | |
| Sold | Each (box) |
| Case Quantity | 24 |
| Shipping Weight (lb) | 0.45 |
Warranty Information
Standard Manufacturer's Limited Warranty
