Description
| Manufacturer Documents: » Download the Satco 65-454 Spec Sheet (PDF) | Installation Instructions (PDF) | Dimensional Drawing (PDF) |

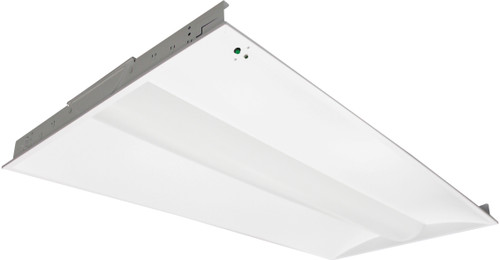

The Satco Nuvo 65-454 is a LED Emergency Troffer Fixture, finished in White. It has an integrated LED light source: 50W, 6250 lumens, 3500K, 80+ CRI. It measures length 47.59", width 23.59", height 2.75" and is rated for damp locations. It runs on 120V-277V, is dimmable (0-10V Dimming; Use 120-277V or 347V Dimmers only) and is cULus certified. A good fit for offices, schools, healthcare and retail ceilings.
Key Features
- Length: 47.59 inches, Width: 23.59 inches, Height: 2.75 inches
- Dimmable
- Damp location rated for indoor use
- 3500K Neutral White Light
- Superior 80 CRI light quality
- 6250 lumens
- Rated for 50,000 hours
- FCC and RoHS compliant
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco Nuvo |
| Part Number | 65-454 |
| UPC | 045923534546 |
| Product Type | Center Basket Troffer |
| Style | Utility |
| Finish | White |
| Material | Steel |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 50W |
| Lumens | 6250L |
| Color Temperature | 3500K |
| CRI | 80+ |
| Voltage | 120V-277V |
| Dimmable | Yes-Dimmable |
| Dimming | 0-10V Dimming, Use 120-277V or 347V Dimmers only |
| Rated Life (hours) | 50000 |
| Dimensions & Mounting | |
| Dimensions | L:47.59" W:23.59" H:2.75" |
| Height (in) | 2.75 |
| Width (in) | 23.59 |
| Mounting | Ceiling |
| Fixture Weight (lb) | 21.37 |
| Ratings & Compliance | |
| Indoor / Outdoor | Indoor |
| Location Rating | Damp |
| Safety Listing | cULus - Certified |
| DLC | Standard |
| California | Non-Compliant |
| Warranty | 5-Years |
| Country of Origin | China |
| Packaging | |
| Sold | Each (box) |
| Case Quantity | 1 |
| Shipping Weight (lb) | 22.49 |
