Description
| Manufacturer Documents: » Download the Satco 65-550 Spec Sheet (PDF) | Installation Instructions (PDF) | Dimensional Drawing (PDF) |

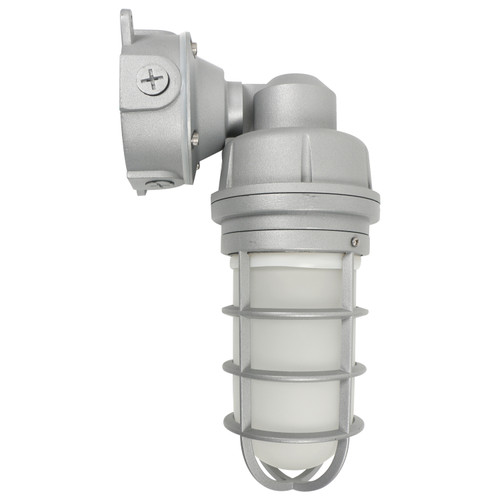

The Satco Nuvo 65-550 is a LED Adjustable Vapor Tight Fixture, finished in Gray. It has an integrated LED light source: 20W, 1700-2000 lumens, 3000K/4000K/5000K (selectable), 80+ CRI. It measures height 13.19", diameter 4.72", extension 7.09" and is rated for wet locations. It runs on 120V-277V and is cETLus listed. A good fit for parking lots, building exteriors, yards and job sites.
Key Features
- CCT Selectable (3000K/4000K/5000K)
- Adjustable Design
- 2KV - Built in Surge Protection
- IP65 Rated
- H:13.19" DIA:4.72" E:7.09"
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco Nuvo |
| Part Number | 65-550 |
| UPC | 045923653087 |
| Product Type | Vapor Proof |
| Style | Utility |
| Finish | Gray |
| Material | Die-Cast Aluminum |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 20W |
| Lumens | 1700L-2000L |
| Color Temperature | 3000K/4000K/5000K |
| CRI | 80+ |
| Voltage | 120V-277V |
| Dimmable | Non-Dimmable |
| Beam Spread | 210 |
| Rated Life (hours) | 50000 |
| Dimensions & Mounting | |
| Dimensions | H:13.19" DIA:4.72" E:7.09" |
| Height (in) | 13.19 |
| Width (in) | 4.72 |
| Diameter (in) | 4.72 |
| Extends (in) | 7.09 |
| Mounting | Ceiling/Wall |
| Fixture Weight (lb) | 4.19 |
| Ratings & Compliance | |
| Indoor / Outdoor | Outdoor |
| Location Rating | Wet |
| IP Rating | IP65 |
| Safety Listing | cETLus - Listed |
| California | Lawful for sale |
| Warranty | 5-Years |
| Country of Origin | Thailand |
| Packaging | |
| Sold | Each (box) |
| Case Quantity | 6 |
| Shipping Weight (lb) | 5.1 |
Warranty Information
Standard Manufacturer's Limited Warranty
