Description
| Manufacturer Documents: » Download the Satco 65-583 Spec Sheet (PDF) | Installation Instructions (PDF) |

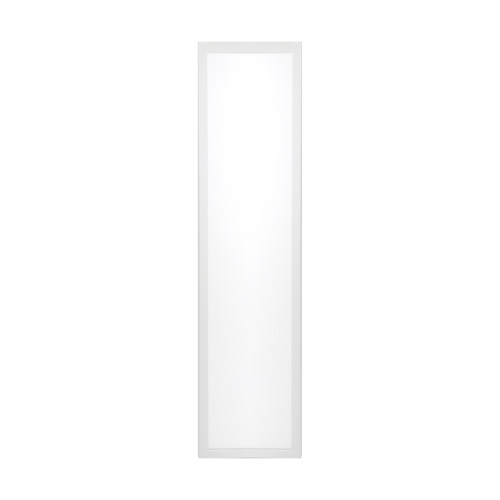

The Satco Nuvo 65-583 is a LED Backlit Flat Panel, finished in White. It has an integrated LED light source: 40W, 4400-4600 lumens, 3500K/4000K/5000K (selectable), 80+ CRI. It measures length 47.72", width 11.84", height 1.50" and is rated for damp locations. It runs on 120V-347V, is dimmable (0-10V Dimming) and is cETLus listed. A good fit for offices, schools, healthcare and retail ceilings.
Key Features
- ColorQuick Technology - CCT Selectable 35K/40K/50K
- Length: 47.72 inches, Width: 11.84 inches, Height: 1.50 inches
- 0-10 volt dimming
- Damp location rated for indoor use
- 50,000 average rated hours of use
- White Finish
- Universal input voltage - 100V-347V
- Dimmable
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco Nuvo |
| Part Number | 65-583 |
| UPC | 045923650789 |
| Product Type | Flat Panel |
| Style | Utility |
| Finish | White |
| Material | Aluminum / Steel |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 40W |
| Lumens | 4400L-4600L |
| Color Temperature | 3500K/4000K/5000K |
| CRI | 80+ |
| Voltage | 120V-347V |
| Dimmable | Yes-Dimmable |
| Dimming | 0-10V Dimming |
| Beam Spread | 120 |
| Rated Life (hours) | 50000 |
| Dimensions & Mounting | |
| Dimensions | L:47.72" W:11.84" H:1.50" |
| Height (in) | 1.5 |
| Width (in) | 11.84 |
| Mounting | Ceiling |
| Fixture Weight (lb) | 4.98 |
| Ratings & Compliance | |
| Indoor / Outdoor | Indoor |
| Location Rating | Damp |
| IP Rating | IP20 |
| Safety Listing | cETLus - Listed |
| DLC | Standard |
| California | Lawful for sale |
| Warranty | 5-Years |
| Country of Origin | China |
| Packaging | |
| Sold | Each (box) |
| Case Quantity | 1 |
| Shipping Weight (lb) | 6.7 |
