Description
| Manufacturer Documents: » Download the Satco 65-656 Spec Sheet (PDF) | Installation Instructions (PDF) | Dimensional Drawing (PDF) |

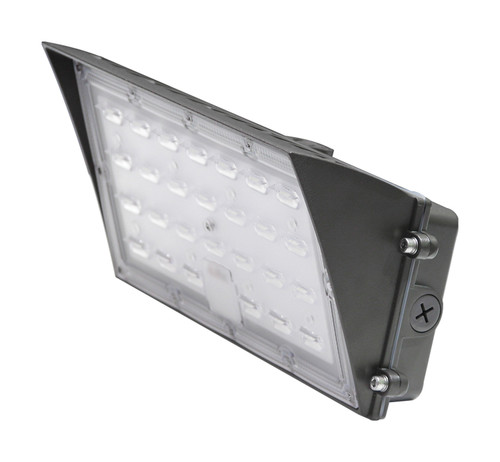

The Satco Nuvo 65-656 is a 40 Watt Small LED Wall Pack with Integrated Bypassable Photocell, finished in Bronze. It has an integrated LED light source: 40W, 4200-5000 lumens, 3000K/4000K/5000K (selectable), 70+ CRI. It measures width 8.50", height 8.44", extension 7.45" and is rated for wet locations. It runs on 120V-277V and is cULus certified. A good fit for building perimeters, parking areas, loading docks and walkways.
Key Features
- 80 Degree Viewing Angle
- Integrated Bypassable Photocell
- CCT Selectable
- UV stabilized powder coated finish
- IP65 rated
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco Nuvo |
| Part Number | 65-656 |
| UPC | 045923651762 |
| Product Type | Wall Pack |
| Style | Traditional |
| Finish | Bronze |
| Material | Aluminum / Polycarbonate (PC) |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 40W |
| Lumens | 4200L-5000L |
| Color Temperature | 3000K/4000K/5000K |
| CRI | 70+ |
| Voltage | 120V-277V |
| Dimmable | Non-Dimmable |
| Beam Spread | 80 |
| Rated Life (hours) | 50000 |
| Dimensions & Mounting | |
| Dimensions | W:8.50" H:8.44" E:7.45" |
| Height (in) | 8.44 |
| Width (in) | 8.5 |
| Extends (in) | 7.45 |
| Mounting | Wall |
| Fixture Weight (lb) | 5.08 |
| Ratings & Compliance | |
| Indoor / Outdoor | Outdoor |
| Location Rating | Wet |
| IP Rating | IP65 |
| Safety Listing | cULus - Certified |
| California | Lawful for sale |
| Warranty | 5-Years |
| Country of Origin | Vietnam |
| Packaging | |
| Sold | Each (box) |
| Case Quantity | 4 |
| Shipping Weight (lb) | 5.35 |
Warranty Information
Standard Manufacturer's Limited Warranty
