Description
| Manufacturer Documents: » Download the Satco 65-822R1 Spec Sheet (PDF) | Installation Instructions (PDF) | Dimensional Drawing (PDF) |

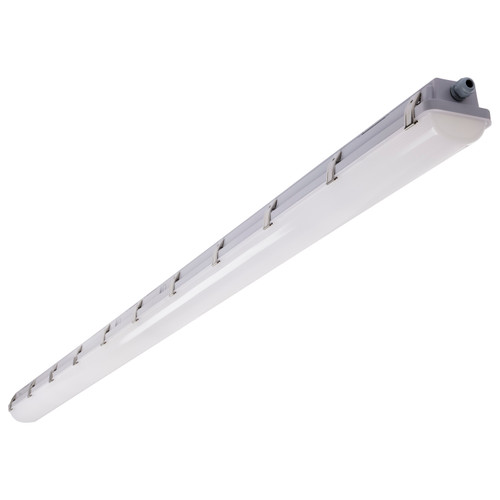

The Satco Nuvo 65-822R1 is an 8 Foot, finished in Gray. It has an integrated LED light source: 50W/60W/72W, 6400-9360 lumens, 3000K/4000K/5000K (selectable), 80+ CRI. It measures length 94.49", width 4.33", height 3.46" and is rated for wet locations. It runs on 120V-347V, is dimmable (0-10V Dimming) and is cETLus listed. A good fit for garages, workshops, warehouses, utility rooms and commercial spaces.
Key Features
- Field Selectable - 3 CCT and 3 Wattage
- 8 foot
- Vapor Proof Model
- 120-347 Voltage
- Durable, Gray Polycarbonate Material
- IP65 & IK08 Rated
- Wet Location Rated
- 50,000 Hour Functional Life
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco Nuvo |
| Part Number | 65-822R1 |
| UPC | 045923650970 |
| Product Type | Vapor Tight |
| Style | Utility |
| Finish | Gray |
| Material | Polycarbonate (PC) |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 50W/60W/72W |
| Lumens | 6400L-9360L |
| Color Temperature | 3000K/4000K/5000K |
| CRI | 80+ |
| Voltage | 120V-347V |
| Dimmable | Yes-Dimmable |
| Dimming | 0-10V Dimming |
| Beam Spread | 120 |
| Rated Life (hours) | 50000 |
| Dimensions & Mounting | |
| Dimensions | L:94.49" W:4.33" H:3.46" |
| Height (in) | 3.46 |
| Width (in) | 4.33 |
| Mounting | Ceiling/Wall |
| Fixture Weight (lb) | 11.91 |
| Ratings & Compliance | |
| Indoor / Outdoor | Indoor, Outdoor |
| Location Rating | Wet |
| IP Rating | IP65 |
| Safety Listing | cETLus - Listed |
| DLC | Standard, Standard |
| California | Lawful for sale |
| Warranty | 5-Years |
| Country of Origin | Thailand |
| Packaging | |
| Sold | Each (box) |
| Case Quantity | 1 |
| Shipping Weight (lb) | 12.35 |
| Replaces | 65-822 |
