Description
| Manufacturer Documents: » Download the Satco 65-943 Spec Sheet (PDF) | Installation Instructions (PDF) | Dimensional Drawing (PDF) |

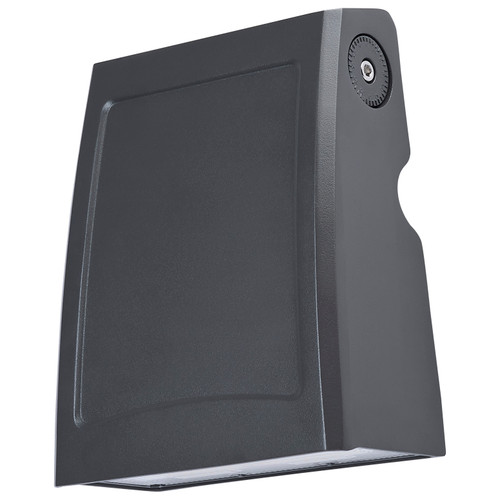

The Satco Nuvo 65-943 is a 15/20/25 Watt, finished in Bronze. It has an integrated LED light source: 15W/20W/25W, 2193-3669 lumens, 3000K/4000K/5000K (selectable), 80+ CRI. It measures width 6.50", height 3.84", extension 8.08" and is rated for wet locations. It runs on 120V-277V, is dimmable (0-10V Dimming) and is cULus certified. A good fit for building perimeters, parking areas, loading docks and walkways.
Key Features
- 3 Wattage Selectable (25W/20W/15W)
- 3 CCT Selectable (3000K/4000K/5000K)
- Range Voltage 120-277V
- Integrated By-Passable Photocell
- 4kV Surge Protection
- IP65 & IK08 Rated
- 0-10V Dimmable
- 50,000 Life Hours
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco Nuvo |
| Part Number | 65-943 |
| UPC | 045923410291 |
| Product Type | Wall Pack |
| Style | Utility |
| Finish | Bronze |
| Material | Die-Cast Aluminum |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 15W/20W/25W |
| Lumens | 2193L-3669L |
| Color Temperature | 3000K/4000K/5000K |
| CRI | 80+ |
| Voltage | 120V-277V |
| Dimmable | Yes-Dimmable |
| Dimming | 0-10V Dimming |
| Beam Spread | 65x95 |
| Rated Life (hours) | 50000 |
| Dimensions & Mounting | |
| Dimensions | W:6.50" H:3.84" E:8.08" |
| Height (in) | 3.84 |
| Width (in) | 6.5 |
| Extends (in) | 8.08 |
| Mounting | Wall |
| Fixture Weight (lb) | 3.31 |
| Ratings & Compliance | |
| Indoor / Outdoor | Outdoor |
| Location Rating | Wet |
| IP Rating | IP65 |
| Safety Listing | cULus - Certified |
| DLC | Premium |
| California | Lawful for sale |
| Warranty | 5-Years |
| Country of Origin | Vietnam |
| Packaging | |
| Sold | Each (box) |
| Case Quantity | 4 |
| Shipping Weight (lb) | 4.08 |
| Replaces | 65-677 |
