Description
| Manufacturer Documents: » Download the Satco S11703 Spec Sheet (PDF) | Installation Instructions (PDF) |

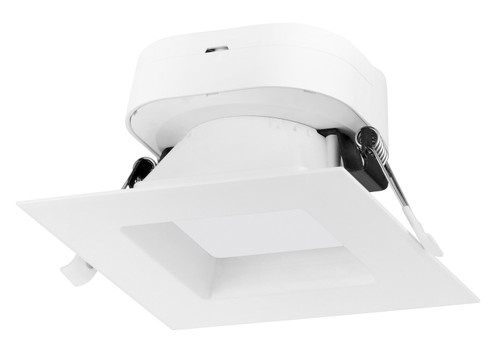

The Satco S11703 is a 7 watt LED Direct Wire Downlight, finished in White. It has an integrated LED light source: 7W, 490 lumens, 5000K, 90+ CRI. It measures length 4.94", width 4.94", height 3.00" and is rated for wet locations. It runs on 120V, is dimmable (Forward Phase or Reverse Phase or Phase Selectable) and is cETLus listed. A good fit for kitchens, living rooms, offices and retail spaces.
Key Features
- Canless recess lighting engineered for new constructions, drop ceilings, multi-level constructions and shallow ceilings.
- Fixture dimensional specifications (in inches) Height: 3.00, Width: 4.94, Length: 4.94
- Direct Wired installation; Wet rated, for indoor use
- Integrated LED
- 90 CRI superior quality LED light, rated for 40000 hours, for an energy efficient lighting option
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco |
| Part Number | S11703 |
| UPC | 045923117039 |
| Product Type | Direct Wire LED Downlight |
| Style | Utility |
| Finish | White |
| Material | Aluminum / Polycarbonate (PC) |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 7W |
| Lumens | 490L |
| Color Temperature | 5000K |
| CRI | 90+ |
| Voltage | 120V |
| Dimmable | Yes-Dimmable |
| Dimming | Forward Phase or Reverse Phase or Phase Selectable |
| Beam Spread | 90 |
| Rated Life (hours) | 40000 |
| Dimensions & Mounting | |
| Dimensions | L:4.94" W:4.94" H:3.00" |
| Height (in) | 3 |
| Width (in) | 4.94 |
| Mounting | Ceiling |
| Fixture Weight (lb) | 0.35 |
| Ratings & Compliance | |
| Indoor / Outdoor | Indoor |
| Location Rating | Wet |
| Safety Listing | cETLus - Listed |
| California | Lawful for sale |
| Warranty | 5-Years |
| Country of Origin | China |
| Packaging | |
| Sold | Each (box) |
| Case Quantity | 12 |
| Shipping Weight (lb) | 0.55 |
