| Manufacturer Documents: » Download the Satco S21607 Spec Sheet (PDF) | Installation Instructions (PDF) | Dimensional Drawing (PDF) |

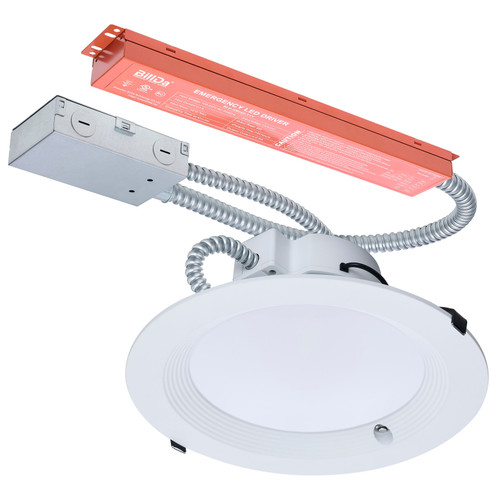

The Satco Nuvo S21607 is a Plus Series Commercial LED Downlight, finished in White. It has an integrated LED light source: 38W/31W/26W, 4200/3700/3200 lumens, 2700K/3000K/3500K/4000K/5000K (selectable), 90+ CRI. It measures height 4.49", diameter 11.77" and is rated for wet locations. It runs on 120V-277V, is dimmable (Dual Dimming; Forward or Reverse Phase at 120V/0-10V at 120-347V) and is cETLus listed. A good fit for kitchens, living rooms, offices and retail spaces.
Key Features
- Field Selectable - 5 CCT and 3 Wattage
- 10-Inch Round, Emergency Battery Backup Model
- Dual Dimming
- Regress Baffle Design for Reduced Glare
- 18 Inch Electrical Whip
- EM Model includes self-diagnostic emergency feature
- 90 CRI
- Wet Location Rated
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco Nuvo |
| Part Number | S21607 |
| UPC | 045923411229 |
| Product Type | Commercial Downlight Retrofit |
| Style | Utility |
| Finish | White |
| Material | Aluminum |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 38W/31W/26W |
| Lumens | 4200L/3700L/3200L |
| Color Temperature | 2700K/3000K/3500K/4000K/5000K |
| CRI | 90+ |
| Voltage | 120V-277V |
| Dimmable | Yes-Dimmable |
| Dimming | Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V |
| Beam Spread | 100 |
| Rated Life (hours) | 50000 |
| Dimensions & Mounting | |
| Dimensions | H:4.49" DIA:11.77" |
| Height (in) | 4.49 |
| Width (in) | 11.77 |
| Diameter (in) | 11.77 |
| Mounting | Ceiling |
| Sloped Ceiling Compatible | No |
| Fixture Weight (lb) | 4.3 |
| Ratings & Compliance | |
| Indoor / Outdoor | Indoor and Outdoor |
| Location Rating | Wet |
| IP Rating | IP20 |
| Safety Listing | cETLus - Listed |
| ENERGY STAR | Yes |
| California | Lawful for sale |
| Warranty | 5-Years |
| Country of Origin | Thailand |
| Packaging | |
| Sold | Each (color box) |
| Case Quantity | 3 |
| Shipping Weight (lb) | 5.08 |
