Description
Downloads: Spec Sheet (PDF) | Installation Instructions (PDF)

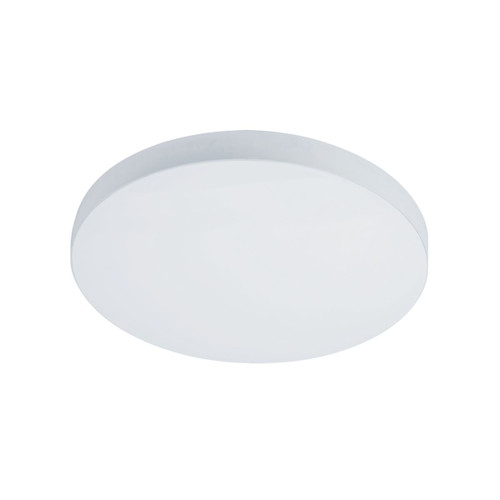

The Halo SMX14RLSFSD2W: 14" Round Surface Mount LED Downlight, lumen selectable, 90+ CRI, Field selectable until 5000K, Matte White, Phase cut LE/TE 5%.
Features
- Round 14" SMX Edgeless Surface Mount Downlight in Matte White
- Fully luminous edge-to-edge lens with no front-face flange
- Installs from the below the ceiling in most 3O (3-1/2") and 4O (4") standard round/octagonal junction boxes
- 6-Position Switch: 5-color Field-SeleCCTable (2700K, 3000K, 3500K, 4000K, 5000K) plus Dim-to-Warm (3000K dims to 1800K), 90 plus CRI
- Brightness: Lumen Select - 1200/1600/2000 lm (nominal)
- Dimming: Dims to 5 percent (phase cut LE/TE) with compatible dimmers, 120V input
- Snap-On 3D Printed Decorative Shades (sold separately)
- Edgeless Decorative Overlays (sold separately)
- Mounting bracket installs easily and holds fixture tight to the ceiling
- Mounting bracket, hardware, orange LED Quick Connect, and E26 socket adapter included
| Specifications | |
|---|---|
| Brand | Halo |
| Part Number | SMX14RLSFSD2W |
| UPC | 080083292141 |
| Voltage Rating | 120V |
| Wattage | 26.16W |
| Mounting | Surface Mount |
| Lamp Type | LED |
| Amperage Rating | 0.13A |
| Sub Category | Downlights |
| Family | SMX Edgeless Surface Mount LED Downlights |
| Dimensions (in) | 15.55 x 2.36 x 15.55 |
