Description
Downloads: Spec Sheet (PDF) | Installation Instructions (PDF)

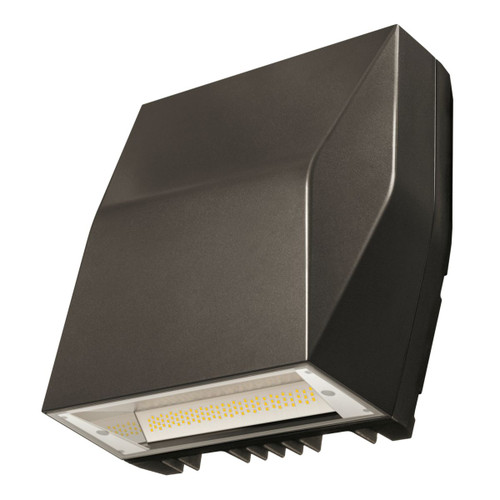

The Lumark AXCS3A: Axcent Small Wall Pack, 27W, 4000K, 120-277V, Full Cutoff.
Features
- Available in 14W - 123W (1,800 - 17,000 lumens) models
- Full cutoff and refractive lens models available
- Energy and maintenance savings up to 95% compared to HID
- Energy efficient illumination results in up to 144 LPW
- Standard 4000K CCT minimum 70CRI (3000K and 5000K CCT optional)
- Hook-N-Lock mechanism for quick, easy installation
- Wall mount, inverted wall, floodlight, and pole mount options
- 120-277V Standard, 347V or 480V optional. Standard 0-10V dimming
- Integrated stand-alone or wireless controls for additional savings
| Specifications | |
|---|---|
| Brand | Lumark |
| Part Number | AXCS3A |
| UPC | 080083888009 |
| Voltage Rating | 120-277V |
| Wattage | 27W |
| Mounting | Wall Mount |
| Lamp Type | LED |
| Amperage Rating | 0.23 at 120V |
| Sub Category | Wall Mount |
| Family | Axcent Wall Series |
| Dimensions (in) | 10.12 x 6.38 x 10.44 |
