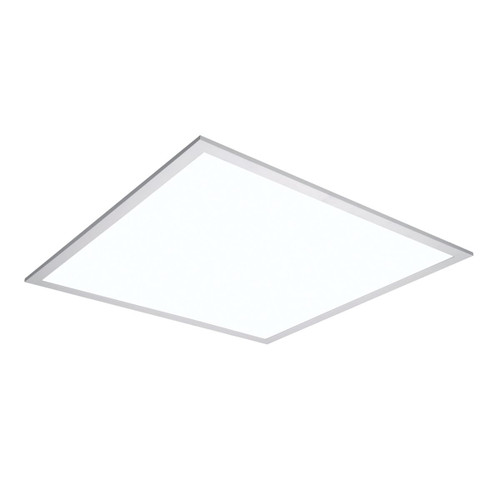

The Metalux 22FP4240C-EL7W: 2x2 LED recessed flat panel, 4200 Lumen, 4000K, 80 CRI, 0-10V continuous dimming driver, 7W EM Pack, Installed.
Features
- Ultra thin 1.75" height fits shallow plenums with room to spare
- Standard and High Lumen models up to 7000 lumens
- Up to 124 lumens per watt delivering up to 53% energy savings
- Stock CCT available in 3500, 4000 and 5000K
- 80 CRI standard with 90 CRI option
- UNV driver and 0-10V dimming standard
- Lumen maintenance L73, 60K hours
- Superior optics ensure long life, smooth corner to corner illumination
- Easy to install - wire and wire nuts included
| Specifications | |
|---|---|
| Brand | Metalux |
| Part Number | 22FP4240C-EL7W |
| UPC | 080083479924 |
| Voltage Rating | 120/277V |
| Wattage | 39W |
| Mounting | Recessed |
| Lamp Type | LED |
| Amperage Rating | 0.142 (at 277V) |
| Sub Category | Recessed & Surface |
| Family | FP Panel |
| Dimensions (in) | 24.2 x 25.5 x 2.37 |
