Description
| Manufacturer Documents: » Download the Satco 65-674 Spec Sheet (PDF) | Installation Instructions (PDF) | Dimensional Drawing (PDF) |

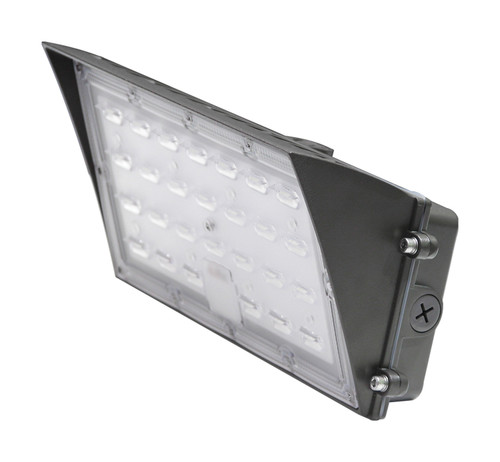

The Satco Nuvo 65-674 is a 40 Watt Semi Cutoff LED Wall Pack, finished in Bronze. It has an integrated LED light source: 40W, 4800-5000 lumens, 3000K/4000K/5000K (selectable), 80+ CRI. It measures width 12.60", height 5.83", extension 5.26" and is rated for wet locations. It runs on 120V-277V, is dimmable (0-10V Dimming) and is cULus certified. A good fit for building perimeters, parking areas, loading docks and walkways.
Key Features
- IP65 rating for all-weather durability
- Directs light out, not up
- 0-10V dimming
- Maintenance free
- Polycarbonate lens, die-cast aluminum body
- Operating temperature: -40C (-40F) to a maximum of 40C (104F)
Specifications at a Glance
| General | |
|---|---|
| Brand | Satco Nuvo |
| Part Number | 65-674 |
| UPC | 045923655296 |
| Product Type | Wall Pack |
| Style | Utility |
| Finish | Bronze |
| Material | Die-Cast Aluminum |
| Light Source & Electrical | |
| Bulb Included | Integrated |
| Wattage | 40W |
| Lumens | 4800L-5000L |
| Color Temperature | 3000K/4000K/5000K |
| CRI | 80+ |
| Voltage | 120V-277V |
| Dimmable | Yes-Dimmable |
| Dimming | 0-10V Dimming |
| Beam Spread | 55x105 |
| Rated Life (hours) | 50000 |
| Dimensions & Mounting | |
| Dimensions | W:12.60" H:5.83" E:5.26" |
| Height (in) | 5.83 |
| Width (in) | 12.6 |
| Extends (in) | 5.26 |
| Mounting | Wall |
| Fixture Weight (lb) | 3.97 |
| Ratings & Compliance | |
| Indoor / Outdoor | Outdoor |
| Location Rating | Wet |
| IP Rating | IP65 |
| Safety Listing | cULus - Certified |
| DLC | Premium |
| California | Lawful for sale |
| Warranty | 5-Years |
| Country of Origin | Vietnam |
| Packaging | |
| Sold | Each (box) |
| Case Quantity | 4 |
| Shipping Weight (lb) | 4.94 |
Warranty Information
Standard Manufacturer's Limited Warranty
